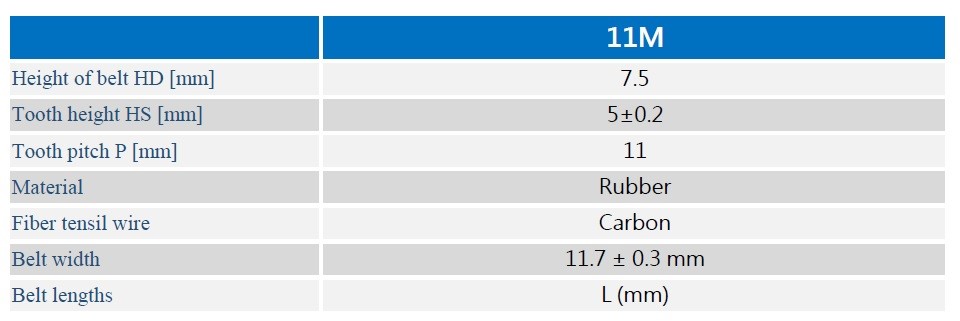

產品特色 Specification

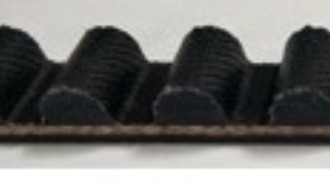

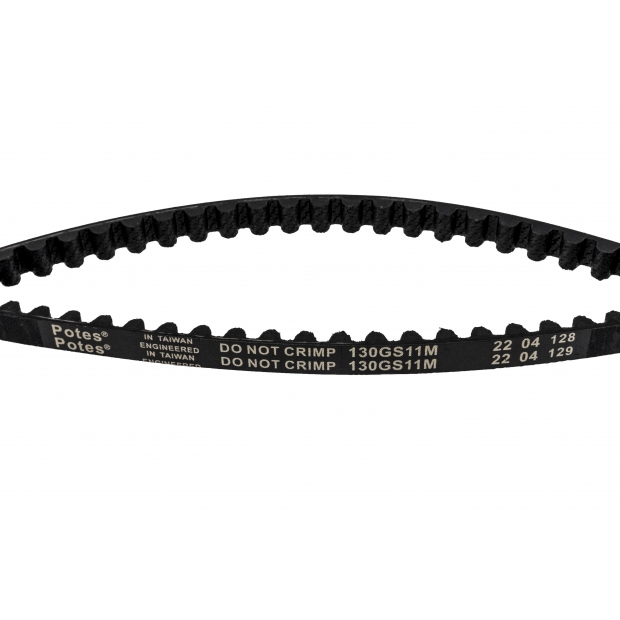

11M時規皮帶 Timing Belt
節距: 11 mm
材質: 橡膠材質
芯線: 碳纖維
適用溫度: -30°C 至 +100°C
Pitch : 11mm
Material : Rubber
Carbon fibre tension cord.
Cool & Heat resistant: -30°C ~ +100°C

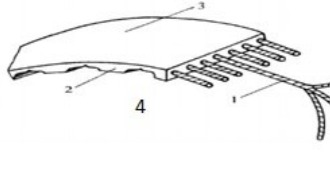

Components of belt : 1. Fiber Wire 2. Rubber 3. Shell cloth 4. Lining cloth
With water & UV resistant.
Max. tensile strength : over 1600N (reference: JIS standard)

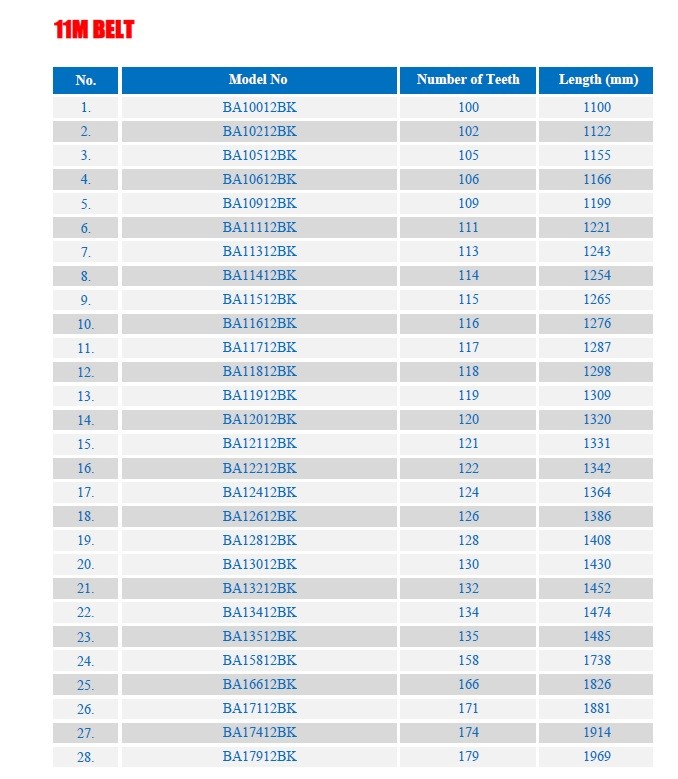

產品規格 Available Sizes
