前輪組含爪片 Chainring, Spider & Shield

60T 前輪組

60T 前輪組

60T 齒盤,雙護蓋 & 爪片 (BCD130)
詳細介紹

產品特色 Specification

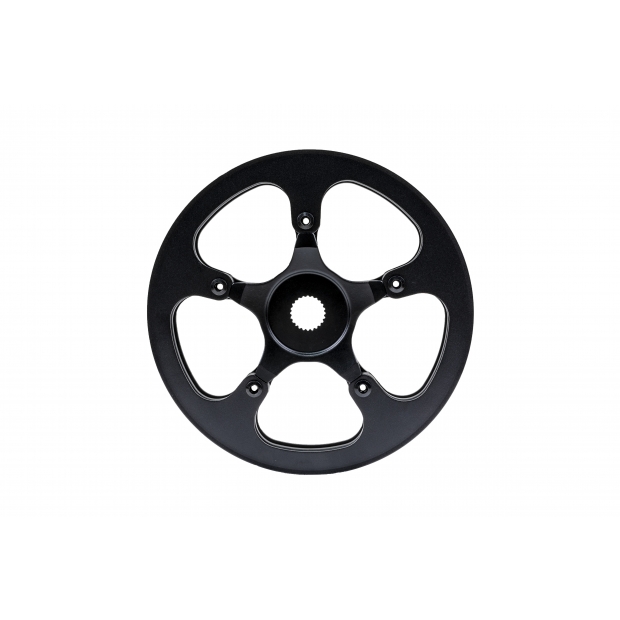

60T 前輪組



搭配 : 60T 齒盤

搭配 : 5爪爪片

選配 : 單 / 雙護片

材質 : 6061 鋁合金鍛造CNC

加工顏色 : 噴砂陽極黑色



60T FRONT WHEEL SET



With 60T Chainring

With 5 Claw Spider

With Single or Double Shields

Material: 6061 Aluminum Alloy

(Forged with CNC machined)

Color: Black Anodized



HOLLOW DESIGN


中空設計 PITCH : 11M

* 適用搭配中置電機 (扭力傳感器)



          * 中置電機款式則不含曲柄

         *  客戶自備曲柄:

             48T為四爪/BCD104mm;

             52T以上為5爪/BCD130mm



* Suitable for: Mid-motor drive and torge sensor.

* In case of mid-motor drive : cranks are excluded.

* In case of customer-owned cranks,

   for 48T front wheel : BCD 104mm with 4 screws.

   for 52T and over : BCD 130mm with 5 screws.

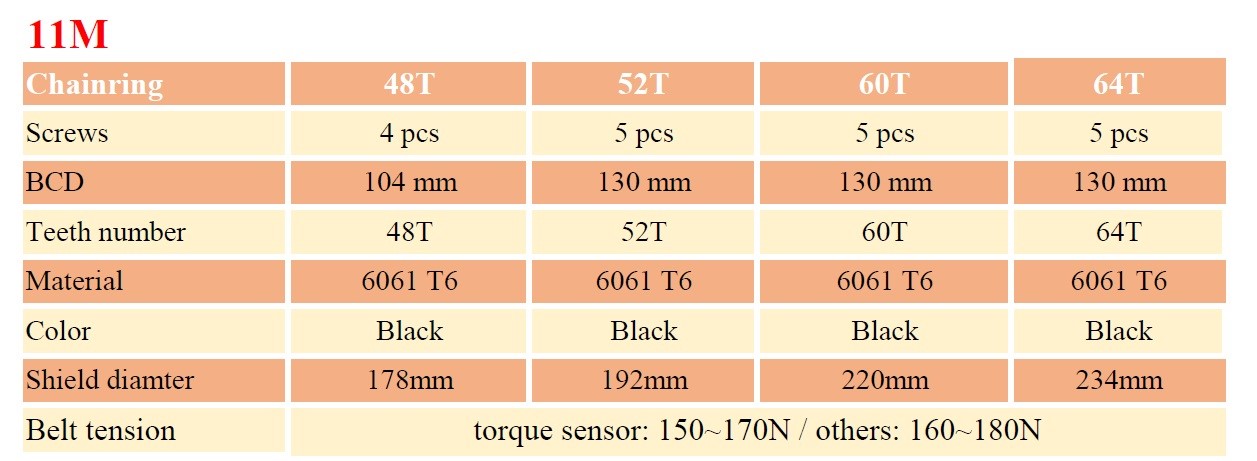

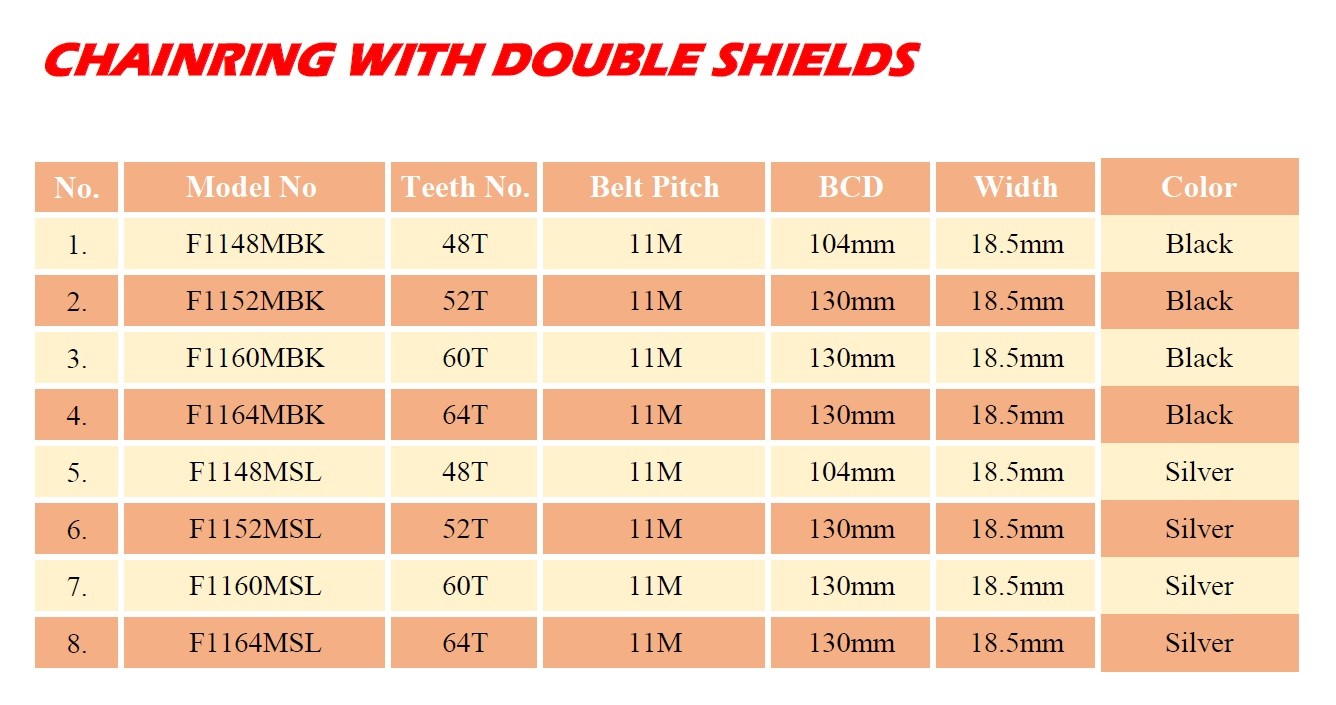

產品規格 Available Sizes
